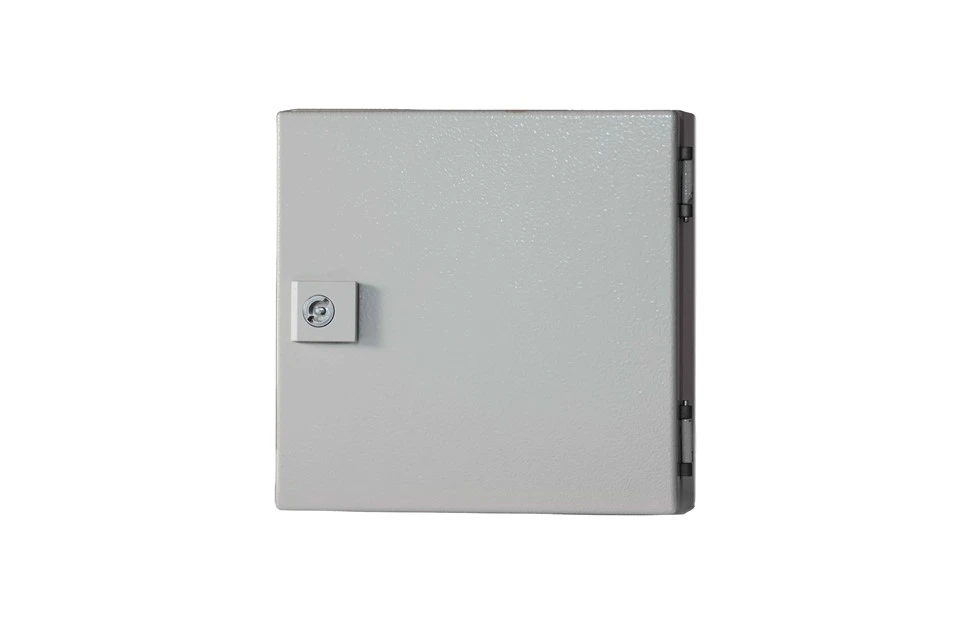

Wall Mount Electrical Junction Box
Available in multiple sizes, the junction box can be customized with cable entry holes, mounting plates, dimensions, and other configurations to meet different electrical installation requirements. Prota supports OEM and custom metal enclosure manufacturing for project-based and bulk orders.
Key Advantages of Wall Mount Electrical Junction Box
Wall-Mounted Installation Structure
The Wall Mount Electrical Junction Box uses a rear mounting structure with fixing holes or brackets, allowing the box to be secured directly to walls, machine frames, or equipment panels. This keeps junction points away from the floor and provides a defined installation position.
Organized Internal Wiring Space
The enclosure provides dedicated space for terminal blocks, cable connections, and wiring junctions. Internal components can be arranged according to cable direction and connection points, leaving sufficient space for wire routing and terminal access.
Flexible Cable Entry Configuration
Cable entry openings can be positioned on the top, bottom, or side panels according to the installation layout. Gland holes, conduit openings, and other entry points can be machined to match the required cable sizes and routing direction.
Accessible Structure for Inspection & Maintenance
The door or cover provides direct access to internal terminals and wiring connections during installation, testing, and maintenance. Technicians can inspect connections or modify wiring without removing the junction box from its wall-mounted position.
- In-House Sheet Metal Fabrication
Laser cutting, CNC bending, welding, grinding, and surface treatment are coordinated within the manufacturing process to produce enclosure bodies, doors, mounting plates, and cable entry panels according to specified dimensions.
- Drawing-Based Custom Manufacturing
Customer drawings can be used to define enclosure dimensions, mounting hole positions, cable entry locations, door cutouts, and internal mounting structures. Engineering requirements are reviewed before production to confirm the fabrication details.
- Batch & Repeat-Order Production
Production specifications and approved drawings can be maintained for repeat orders, allowing subsequent batches to follow the same dimensions, hole patterns, component configurations, and surface treatment requirements.
- One-Stop Production & Inspection
The manufacturing process covers fabrication, surface finishing, assembly, and final inspection. Key checks can include enclosure dimensions, door or cover fit, mounting hole position, cable entry alignment, welding condition, and overall assembly condition.
FAQ
Can terminal blocks be arranged in different directions?
Yes. Terminal blocks can be positioned horizontally or vertically depending on the cable routing direction and internal component arrangement. The layout should also allow sufficient access for wiring tools.
Can the enclosure accommodate different cable sizes in one box?
Yes. Different cable entry openings can be incorporated into the same enclosure when the wiring design requires multiple cable diameters or different gland specifications.
Can the junction box be installed in a confined equipment space?
It can be, provided that sufficient clearance is available for door or cover operation, cable bending, terminal access, and maintenance. The enclosure dimensions should be selected based on the actual installation space.
