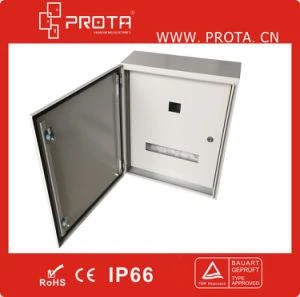

IP66 Waterproof Wall Mount Enclosure Distribution Box

IP66 Waterproof Wall Mount Enclosure Distribution Box
The enclosure is designed to house and industry electrical controls, instruments and components in areas which maybe are wet and oily, provides protection from dust, oil and water.

Standard Configuration
Box enclosure, galvanized mounting plate, plastic lock system, gland plate, sealing gasket, hole plugs, screws.

Craftsmanship Feature
1.The slots design of the box prevent dust, oil and water entering into the electrical box, plus the good coordination with foam sealing gasket, which supply a good protection of the electrical box.
2.The door can be opened 130° by the plugging hinges.
3.There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting bracket, optional mounting feet is also avaliable.
4.The door can be switched by both left and right side.
5.The gland plate is convenient for cable entry.
6.Ground stud on door and body, earth wire is avaliable.


Selection Table

******Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.*****
Craftsmanship feature
1,There are strengthening strips with pilot holes is welded to both  sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2,The foam PU sealing gasket inside the door.
3,The door can be opened 130°by the plugging hinges
4,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6,The door can be switched by both left and right side(door hinges on the left for the left open door, hinges on the right for the right open door).
