Company Information PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on. As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.

Send InquiryChat Now

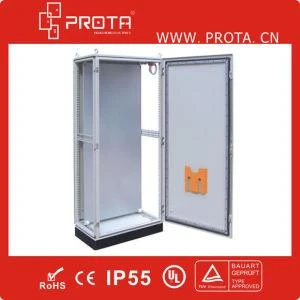

Industral Power Control / Power Distribution Cabinet

Standard Configuration
1. Standard Configuration:
One-piece complete cabinet
The strengthening section bar is installed inside the door
Standard front door (with strengthening strip)
Galvanized mounting plate (contains fixing accessories)
4pcs of eyebolt rings
1pc of back panel
A4 plastic plan pocket

2. Protection degree: IP 55
3. Surface: The whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated.
4. Material and thickness
The cabinet body is cold-rolled sheet steel, the mounting plate is galvanized.
Front Door: 2.0mm
Body: 1.5mm
Mounting plate: 2.5 mm
5. Color: RAL7032 RAL 7035

1. Independent power supply unit, not applicable for paralleled cabinets
2. The front door is 25MM above the floor, which ensures the good performance in the door opening.
3. The main structure is welded with overall section bars, which ensures not only the high intensity, but also the protection level of IP55.
4. Special tube inside the front door strengthens the system, can be fixed with screws and removed easily.
5. The modular holes with the distance of 25mm, makes sure the flexibility and the generality of the installation
6. Galvanized mounting plate can be pushed directly into the cabinet from the front side. Moreover, the installation is much more durable and delivered easily with U typed folding design in the both sides.

Selection table:

Model No.HWD
PR8 126/41200600400
PR8 126/81200600800
PR8 128/41200800400
PR8 128/81200800800
PR8 146/41400600400
PR8 146/81400600800
PR8 148/41400800400
PR8 148/81400800800
PR8 166/41600600400
PR8 166/81600600800
PR8 168/41600800400
PR8 168/51600800500
PR8 168/616001000600
PR8 168/81600800800
PR8 186/41800600400
PR8 186/51800600500
PR8 186/61800600600
PR8 186/81800600800
PR8 188/41800800400
PR8 188/51800800500
PR8 188/61800800600
PR8 188/81800800800
PR8 203/42000300400
PR8 203/52000300500
PR8 203/62000300600
PR8 203/82000300800
PR8 204/42000400400
PR8 204/52000400500
PR8 204/62000400600
PR8 206/42000600400
PR8 206/52000600500
PR8 206/62000600600
PR8 206/82000600800
PR8 208/42000800400
PR8 208/52000800500
PR8 208/62000800600
PR8 208/82000800800
PR8 226/42200600400
PR8 226/52200600500
PR8 226/62200600600
PR8 226/82200600800
PR8 228/42200800400
PR8 228/52200800500
PR8 228/62200800600
PR8 228/82200800800

Cut-outs and drilled holes to your specifications. Should you have any questions or problems, ple4se contact with us.

Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.

Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
